Custom-designed, non-standard bathtub sanding belt machine, manufactured according to client specifications.
1. Product Images
Requirement: Complete the sanding of all four edges of the bathtub.
2、plan

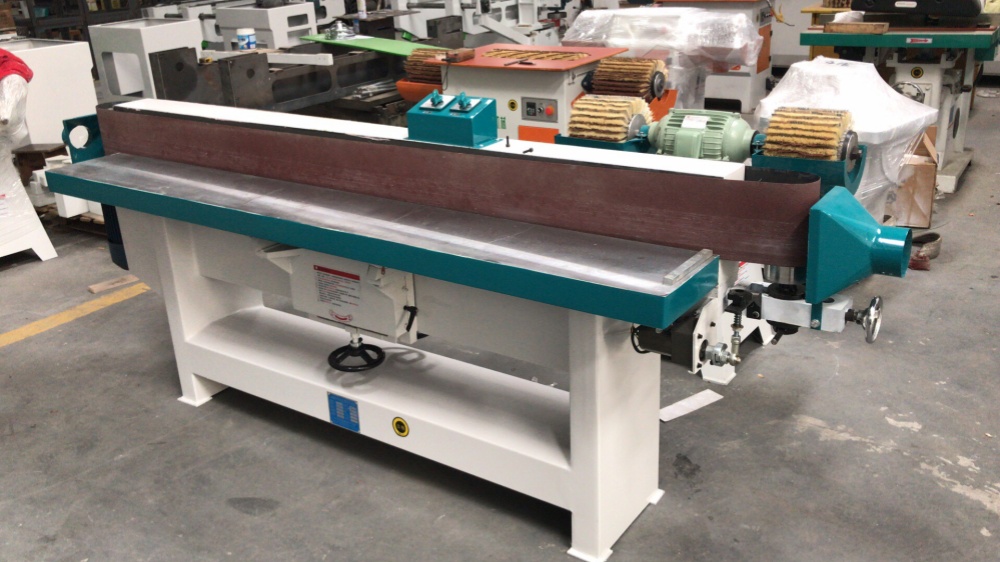

Use this oscillating belt sander for sanding operations.
The specifications for this machine are as follows:
Sanding Belt Dimensions: 4920 × 180 mm
Work Table Dimensions: 2070 × 265 mm
Machine Dimensions: 2810 × 680 × 1150 mm
Total Power: 4.25 kW
Drive Wheel Speed: 2890 rpm
Sanding Belt Linear Speed: 18 m/s
Working Principle: Once the sanding belt is activated, it performs an oscillating (up-and-down) motion during operation. This ensures that no straight sanding lines or streaks are formed on the workpiece during the sanding process.
Problem: The dimensions of this workbench are insufficient.
Therefore, for this product...

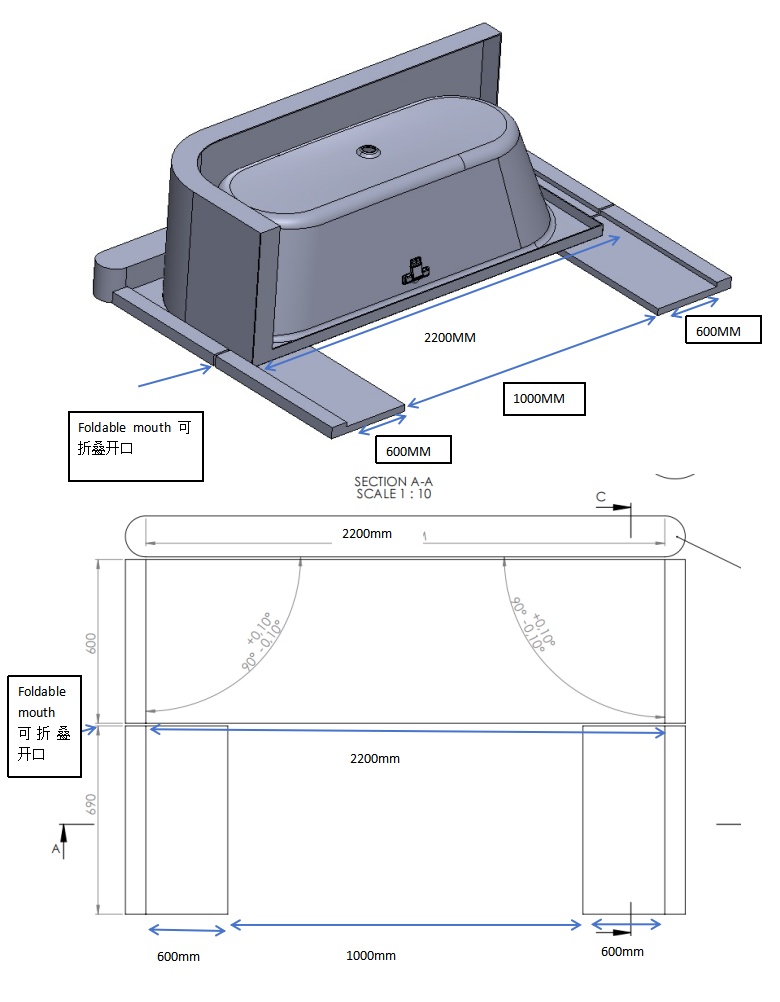

The images above represent the final approved design.
3、The following is the video of the machine after completion.
A custom bathtub sanding belt machine is a specialized oscillating belt sanding system designed to sand and finish the edges of bathtubs—typically four sides in a single pass or setup. Unlike standard belt sanders, these machines are engineered to handle the specific dimensions, shapes, and material requirements of bathtub manufacturing.
The key differentiator is the oscillating belt mechanism: as the belt rotates, it simultaneously moves up and down along the workpiece surface. This prevents the linear scratch patterns that standard belt sanders leave behind, resulting in a uniform, scratch-free finish across all four edges.
YLOZ manufactures custom non-standard sanding belt machines to client specifications, including belt dimensions, work table size, oscillation frequency, and motor power. Whether you produce acrylic, stone resin, or composite material bathtubs,
How the Oscillating Belt System Works
Standard belt sanders leave directional scratch lines running parallel to the belt movement. On high-gloss surfaces like bathtub edges, these scratch lines are visible after polishing and compromise the final finish quality.
The oscillating belt sander solves this problem:
Working principle:
- The sanding belt rotates continuously at high speed (drive wheel speed: 2890 rpm)
- Simultaneously, the belt oscillates vertically (up and down) along the workpiece surface
- The oscillation frequency distributes the sanding contact across different belt areas
- Result: No single scratch line pattern — the surface gets a uniform, omni-directional matte or satin finish
- This finish is ideal as a base for subsequent polishing stages
Why oscillation matters for bathtub edges:
Bathtub edges are high-visibility surfaces. Any scratch line is immediately noticeable under bathroom lighting. The oscillating system eliminates this problem at the sanding stage, reducing the number of passes needed before polishing and improving overall production efficiency.
Technical Specifications
The standard configuration for a four-side bathtub edge sanding machine:
|
Parameter
|
Specification
|
|
Sanding Belt Dimensions
|
4920 × 180 mm
|
|
Work Table Dimensions
|
2070 × 265 mm
|
|
Machine Dimensions
|
2810 × 680 × 1150 mm
|
|
Total Power
|
4.25 kW
|
|
Drive Wheel Speed
|
2890 rpm
|
|
Belt Linear Speed
|
18 m/s
|
|
Oscillation Motion
|
Up-and-down synchronized
|
|
Operation
|
Four-side edge sanding
|
Note: All specifications are customizable. Belt length, width, work table size, motor power, and oscillation speed can be adjusted based on your bathtub dimensions, production volume, and material hardness.
Why Choose a Custom Machine?
Standard belt sanding machines are designed for general-purpose use. For bathtub edge finishing, standard machines often fall short:
- Belt size may not match your bathtub edge dimensions
- No oscillation mechanism means scratch lines on glossy surfaces
- Work table too small for large-format bathtubs
- Power insufficient for hard materials (stone resin, solid surface)
- No customization for specific material requirements
A custom bathtub sanding belt machine addresses all of these:
Belt dimensions — Custom belt length and width match your exact bathtub edge geometry.
Oscillation system — Built-in oscillating mechanism eliminates linear scratch patterns. Oscillation speed and stroke can be tuned to your material and desired finish.
Work table size — Custom work table dimensions accommodate your bathtub sizes, with proper clamping and support.
Power and speed — Motor power and belt speed matched to your material. Higher power for stone resin and composite materials; controlled speed for acrylic and thin-walled shells.
Integration — Can be integrated into existing production lines or designed as a standalone workstation.
Applications
The custom bathtub sanding belt machine is used across the bathtub and sanitary ware manufacturing industry:
- Acrylic bathtubs — Edge sanding and surface preparation before polishing
- Stone resin bathtubs — Grinding and leveling seams and edges on cast composite materials
- Solid surface bathtubs — Matte finishing on solid surface material edges
- Stainless steel bathtubs — Edge deburring and surface preparation
- Stone and marble bathtubs — Profiling and edge smoothing on natural and engineered stone
Beyond bathtubs, the oscillating belt sanding system is applicable to:
- Shower trays and bases
- Washbasins and vanity tops
- Countertops and kitchen sinks
- Other sanitary ware with flat or slightly contoured edges
Customization Options
YLOZ provides full OEM/ODM customization for non-standard sanding belt machines:
Belt Specifications: Belt length and width, abrasive grain type (aluminum oxide, zirconia, ceramic), grit range (40#–320#), single or dual belt configuration.
Machine Configuration: Work table dimensions, number of oscillation heads, motor power, belt speed control (variable frequency drive), clamping and positioning systems.
Material Adaptations: Acrylic and ABS shells, stone resin and solid surface, natural and engineered stone, stainless steel and aluminum.
Production Line Integration: Standalone workstation design, inline conveyor integration, semi-automatic or fully automatic options.
Frequently Asked Questions
Q: Can the machine handle different bathtub sizes?A: Yes. The work table and clamping system can be customized for your specific bathtub dimensions. The oscillating belt covers the full edge height, and the work table supports the bathtub securely during sanding.
Q: What materials can the machine sand?A: The machine handles acrylic, stone resin, solid surface, stainless steel, and stone. Belt type and grit are selected based on material hardness and desired finish.
Q: Does the oscillation mechanism require maintenance?A: The oscillation system uses a mechanical or servo-driven mechanism. Regular lubrication and periodic inspection of guide components are recommended. YLOZ provides full maintenance documentation and spare parts support.
Q: What is the production capacity?A: Capacity depends on bathtub size, material, and the number of passes required. Contact YLOZ to discuss your specific production volume and cycle time requirements.
Q: Can the machine be integrated into our existing production line?A: Yes. YLOZ designs machines for both standalone operation and production line integration. We work with your engineering team to ensure proper layout, power requirements, and workflow.
Q: What after-sales support is available?A: YLOZ provides operation manuals, maintenance guides, video training, and spare parts supply. For critical issues, remote technical support and on-site service options are available.
Why Work with YLOZ?
Custom engineering — Every machine is designed to your specifications. We do not sell modified standard machines as "custom."
Complete polishing solutions — Beyond equipment, YLOZ manufactures the full range of polishing consumables: sanding belts, polishing wheels, polishing compounds, and abrasive discs. One supplier for equipment and consumables.
30+ years of experience — With over three decades in metal surface polishing, YLOZ understands the technical requirements of sanitary ware, bathroom fixtures, and precision metal finishing.
Patented technology — 2 invention patents and 13 utility model patents in polishing equipment and consumables.
International standards — Collaborating with overseas clients, YLOZ machines meet international quality and safety standards.
Get a Custom Quote
If you need a custom bathtub sanding belt machine or oscillating belt sander for sanitary ware and bathroom fixtures, contact YLOZ.
Share your requirements:
- Bathtub dimensions and material
- Desired production capacity
- Current production process
- Power and space constraints
- Budget and timeline
YLOZ will design and manufacture a machine that fits your production exactly.
Contact YLOZ for custom machine specifications and OEM manufacturing.
