Medal Grinding and Polishing Solution

Products and Requirements

The products are medals in various styles (as shown in the image).

Grinding: Some product surfaces require grinding.Consumable: abrasive belt.

Polishing: Some product surfaces require polishing.Consumable: soft linen buffing wheel.

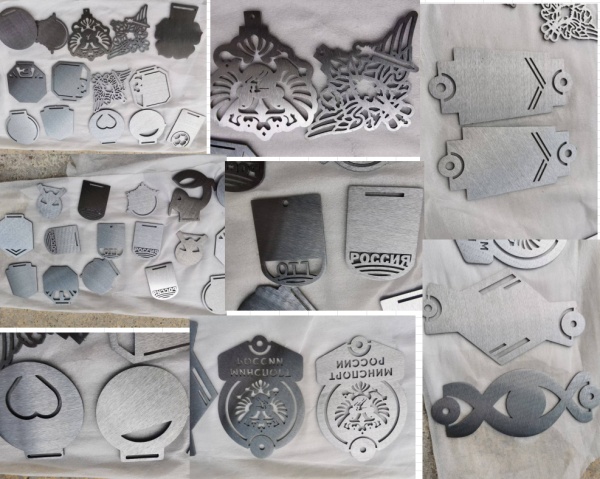

The figure below shows the grinding requirements.

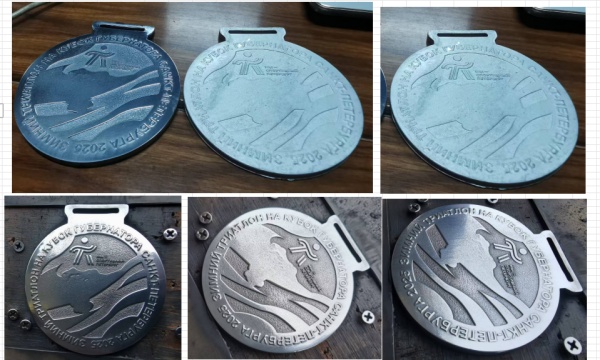

The figure below shows the polishing requirements.

Using the machine

1 、Polishing process:YL-ATPM008D1000+WJP-04-2.2Surface automatic polishing machine dust treatment device Machine photo reference

Polishing process:YL-ATPM008D1000

First sanding motor: 11 kW (four-pole motor, pure copper core, national standard)

Second sanding motor: 11 kW (four-pole motor, pure copper core, national standard)

Conveyor belt motor: 1.5 kW (stepless speed regulation, pure copper core, national standard)

Platform lifting motor: 0.37 kW (national standard motor, pure copper core)

Maximum processing width: <1000 mm, magnetic suction

Maximum processing thickness: within 1-110 mm

Maximum processing length: greater than 28 cm

Sanding belt size: length 2000*width 1020

Workbench: 1000MM full magnetic suction conveyor belt

Weight: 1700 kg

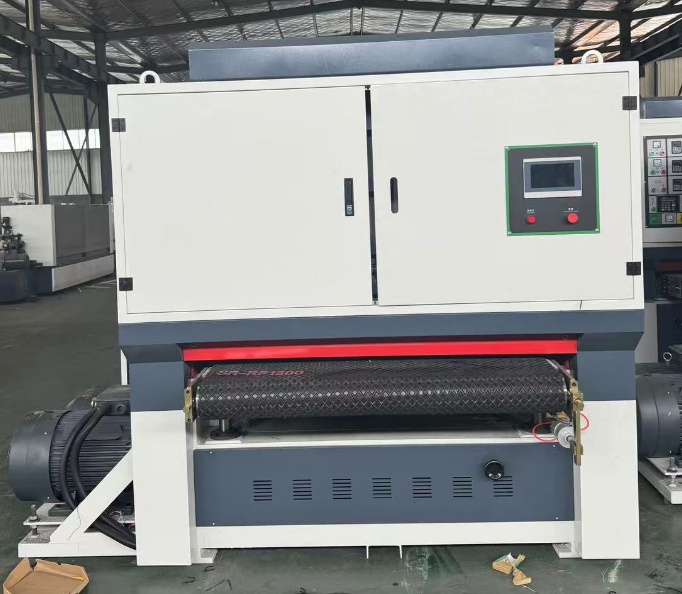

Heavy-duty wide-band fully automatic sanding machine:

1. Microcomputer control panel, digital display, easy operation

2. Korean Autonics photoelectric sensor system to prevent sandbags from running away

3. Pure copper high-efficiency motor, high-temperature resistant aluminum alloy reducer

4. A whole piece of 10cm thick marble conveying table, no deformation, high precision, stable body

5. The stepless speed-adjustable conveying motor can change speed according to different product speeds

6. The sheet metal of the whole machine is processed by gantry milling of national standard steel, high-temperature spraying, corrosion resistance, and stability, which greatly prolongs the service life.

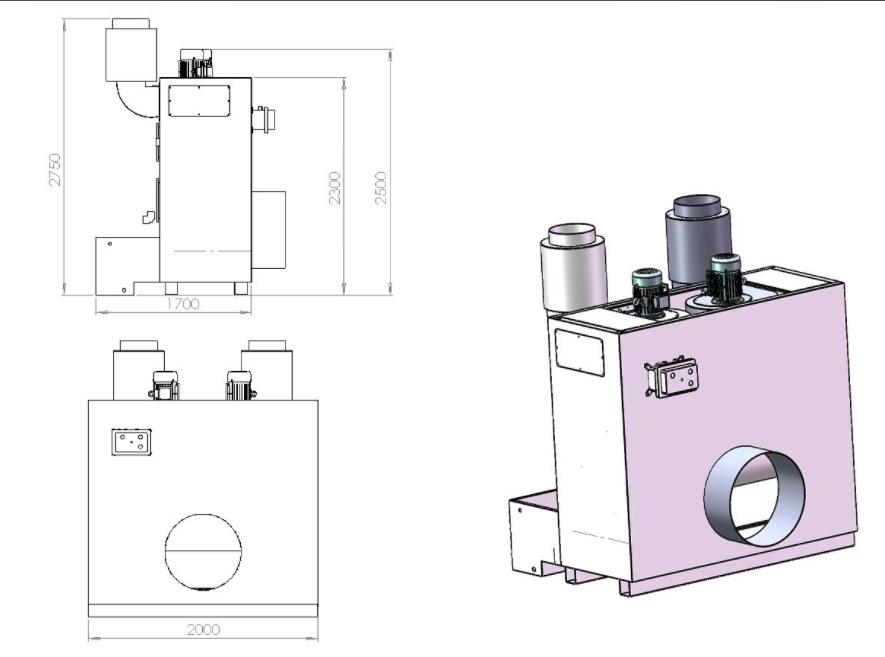

WJP-04-2.2Surface automatic polishing machine dust treatment device Machine photo reference

Air volume: 4000m³/H

Approximate size of equipment: 290*150*220CM

Inlet wind speed: 12-16m/s

Outlet size: D100*4

Dust removal efficiency: 95-99%

Equipment resistance: 300-600Pa

Equipment material: stainless steel

Equipment power: 2.75KW

Motor power: 2.2KW

Water pump power: 0.55KW

Equipment weight: 450KG

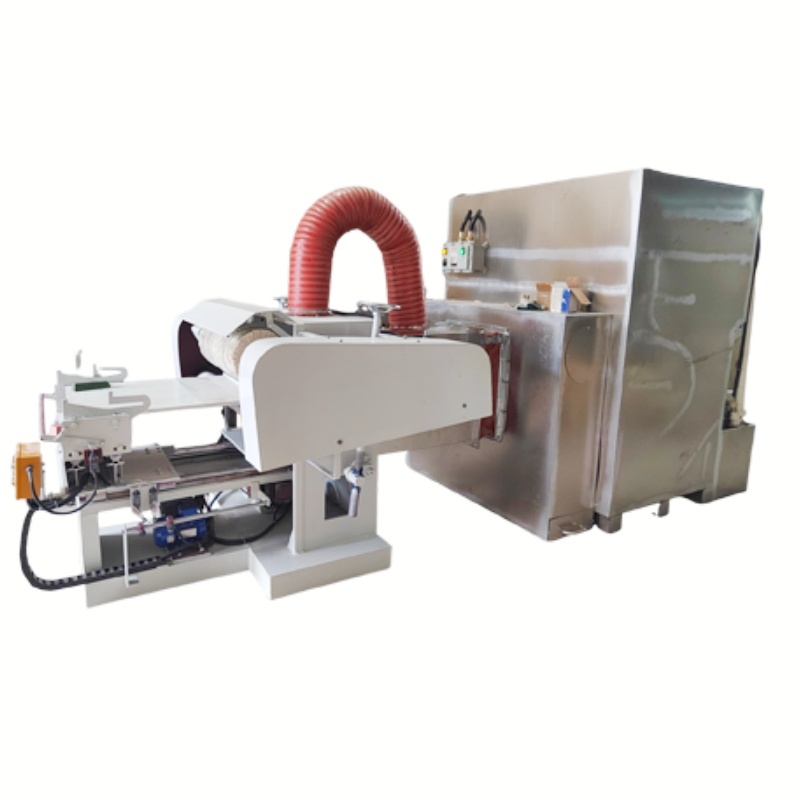

2、Polishing machine

https://www.yl-polishing.com/product/single-axis-automatic-flat-polishing-machinesingle-axis-flat-metal-product-inner-curve-polishing-machine-yl-atpm-6-1

This flat surface polishing process requires the installation of a polishing dust handling system and an automatic wax spraying system.
